DN20中央空調軟管
Central air conditioning hose

上海淞江減震器集團有限公司官方網站為您介紹：DN20中央空調軟管信息，淞江集團為眾多中央空調暖通系統配套軟管產品，空調風機安裝軟管后可以大大吸收風機本身產生的震動和噪音，是眾多高端場所的必選產品。
Shanghai Songjiang absorber group limited official website introduces for you: DN20 central air-conditioning hose, Songjiang group for a number of central air-conditioning HVAC systems supporting installation hose hose products, air conditioning fan after fan can greatly absorb the vibration and noise generated is required, many high-end establishments and products.

性能介紹：
公稱通徑：DN20mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

產品介紹：

1.產品名稱：DN20中央空調軟管

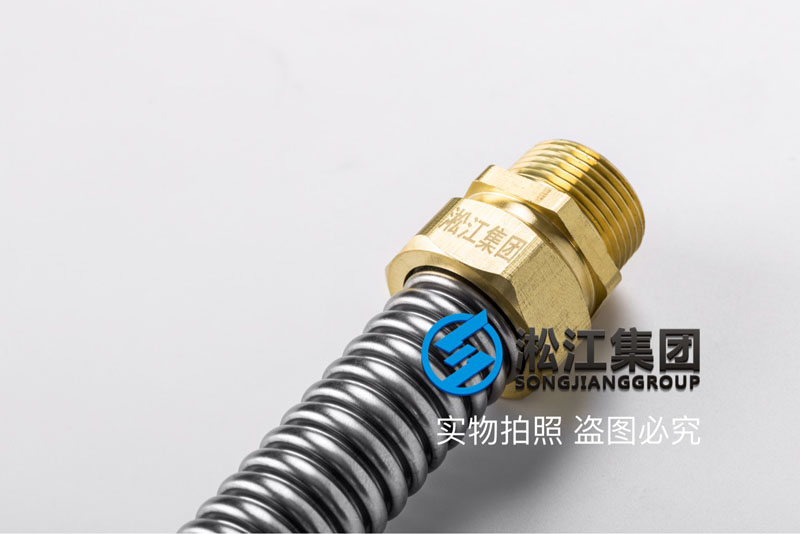

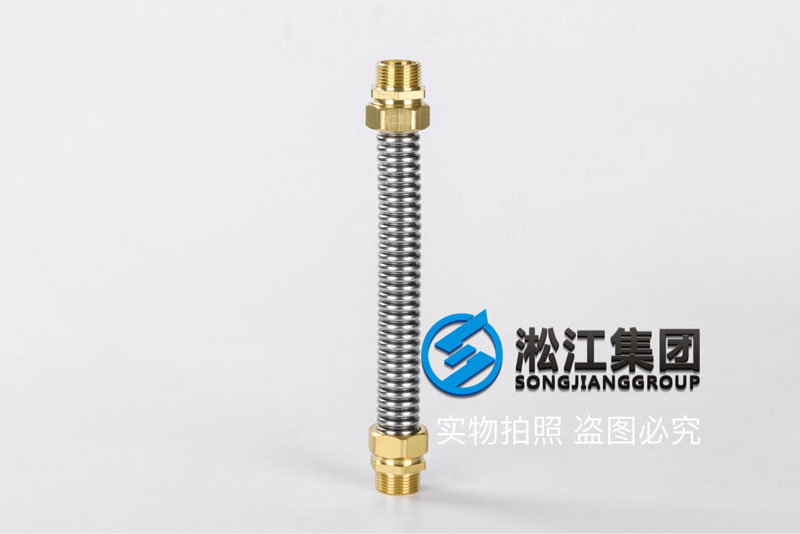

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

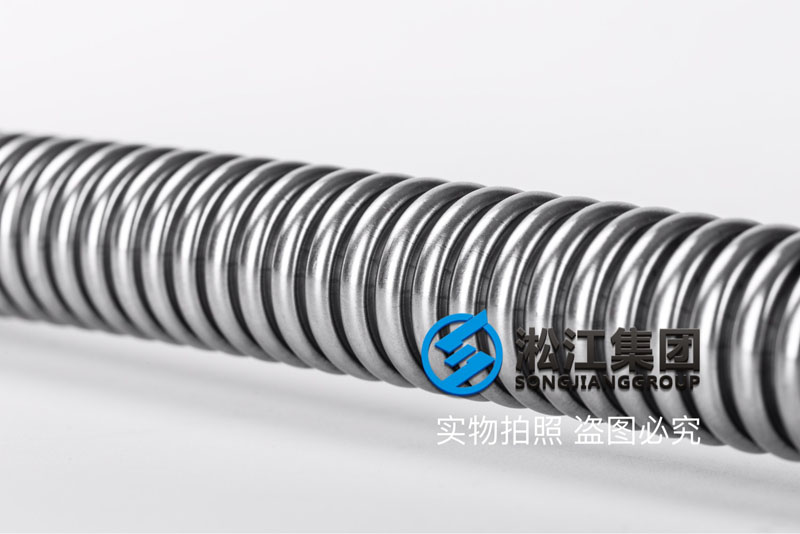

④波紋管：SUS304
Product introduction:

1. Product Name: DN20Central air conditioning hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304

以上DN20中央空調軟管信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多空調軟管產品請點擊：高品質金屬軟管
The above DN20 central air conditioning hose information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.
